34' Towable Lift

34' Towable Lift

Description

The TM34T trailer mount is specifically designed to give maximum reach performance from the most compact chassis possible. By utilizing its versatile telescopic upper boom, the TM34T trailer mount to delivers unrivalled working outreach, especially at lower levels where it's needed most. Hydraulically operated outriggers make setting up the TM34T trailer mount both quick and easy. Telescopic axles coupled with a very compact base make the TM34T trailer mount one of the most compact and maneuverable trailer mounts available.

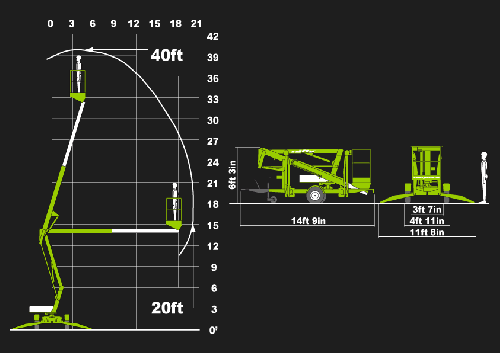

  • Working Height - 40ft
  • Platform Height - 33ft 6in
  • Machine Length - 14ft 9in
  • Retracted Width - 3ft 7in
  • Outrigger Type - Hydraulic
  • Safe Working Load - 500lbs
  • Working Outreach - 20ft
  • Machine Height - 6ft 3in
  • Machine Width - 4ft 11in
  • Working Width - 11ft 8in
  • Min Weight - 3,100lbs
  • Cage Size - 3ft 7in x 2ft 2in
  • Power Options - Bi-Energy (Engine & Battery)

Please contact us for current pricing and availability.
