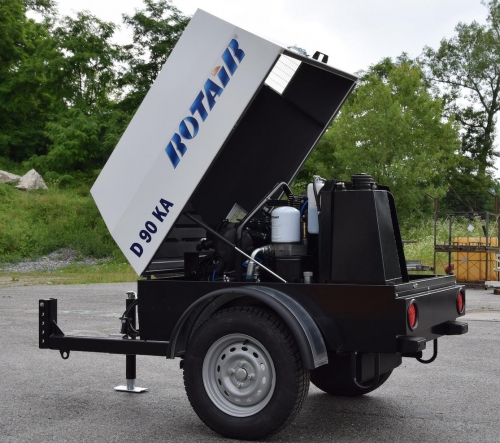

90 CFM Compressor, Towable

90 CFM Compressor, Towable

  • Model Number: D90KA

This ultra compact, ultra quiet 90cfm compressor will efficiently power a single 90 pound breaker or 60 pound rock drill. Powered by a 3 cylinder Kubota diesel engine makes this unit reliable and fuel efficent. The Rotair D90KA offers cost savings over the larger 185 cfm units when only one air tool is needed.

Compressor Specifications

  • Free Air Delivery 90 ft³/min
  • Working Pressure 100 psi
  • Air Outlets 3/4 in. x 2



Engine Specifications

  • Diesel Engine Model Kubota D1105-E4B
  • EPA Tier Tier 4 Final
  • Number of Cylinders 3
  • Displacement 1.1 L
  • Cooling Liquid
  • Injection System IDI
  • Horsepower @ 2900 rpm 25.2 hp
  • Average Fuel Consumption @ 60% 0.92 gal/h



General Specifications and Dimensions

  • Fuel Tank Capacity 10.5 gal
  • Axle Type Heavy-Duty Rubberized Torsion Bar
  • Width 55 in
  • Height 49 in
  • Dry Weight 1190 lb
  • 2" ball hitch
